Rubber-Steel-Gaskets

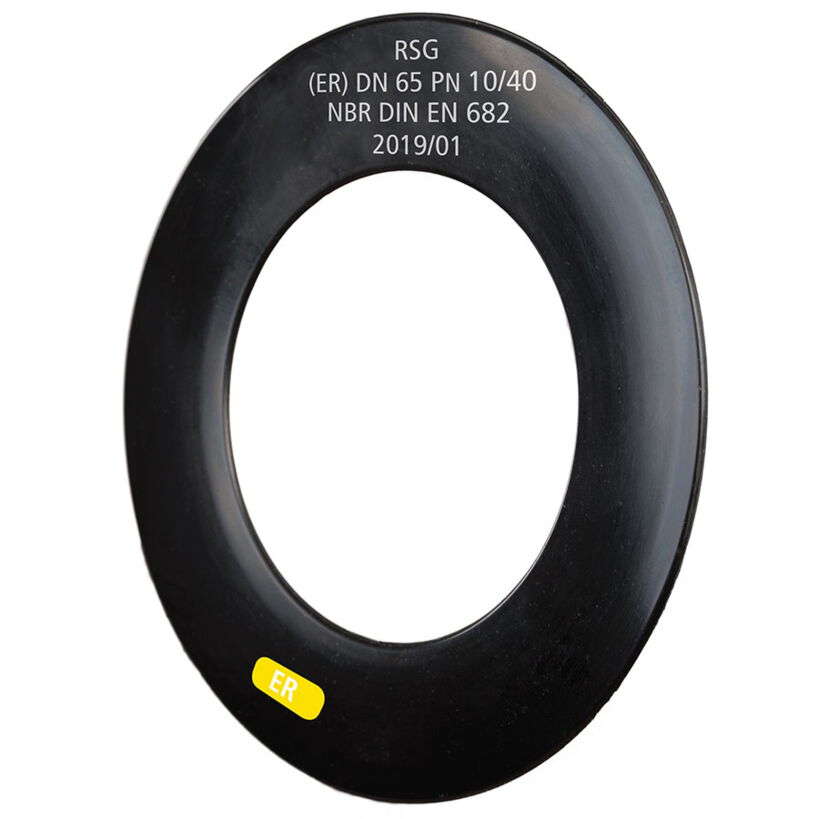

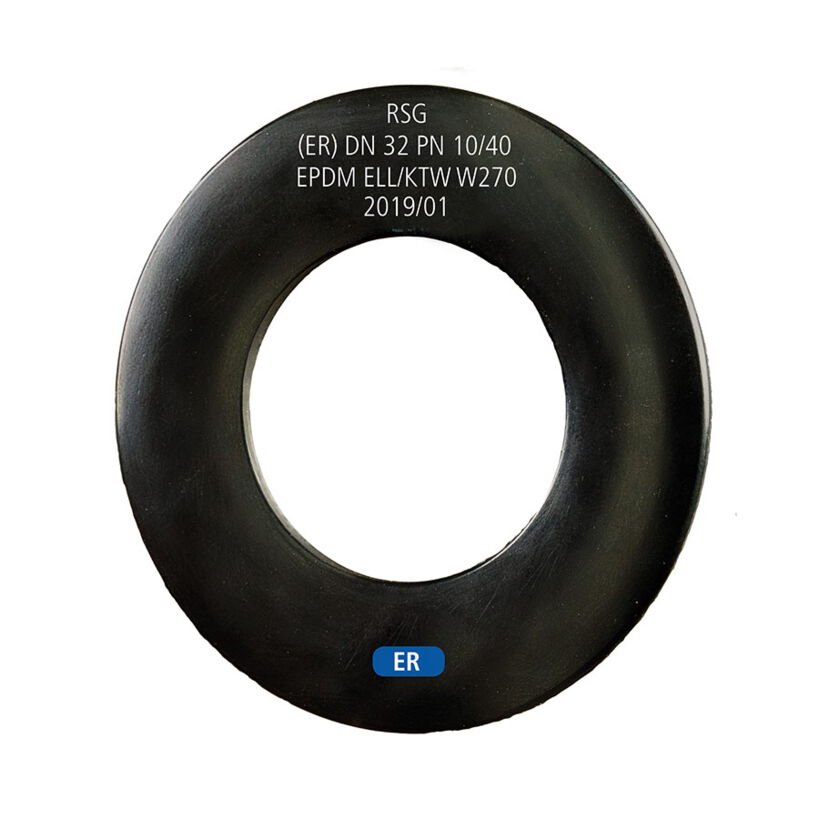

Rubber-steel gaskets (RSG) consist of a defined elastomer with a vulcanised metal ring. The ring in the core of the gasket ensures good surface pressure absorption and supports the centring of the gasket in the flange. Rubber-steel gaskets are used in flange systems for sealing water, waste water, gas, air, acids and diluted alkalis, among other things. Rubber-steel gaskets have their application limit according to DIN 30690-1, which is part of the DVGW regulations. Our EPDM gaskets are approved in accordance with UBA KTW-BWGL and can therefore be installed in drinking water applications. NBR gaskets are approved for use in the gas sector, among others. RSG gaskets fulfil the requirements of DIN EN 682 and DIN EN 681-1.
Data sheet and certificates
Seal type |
Documents / certificates |
||
| German | English | ||

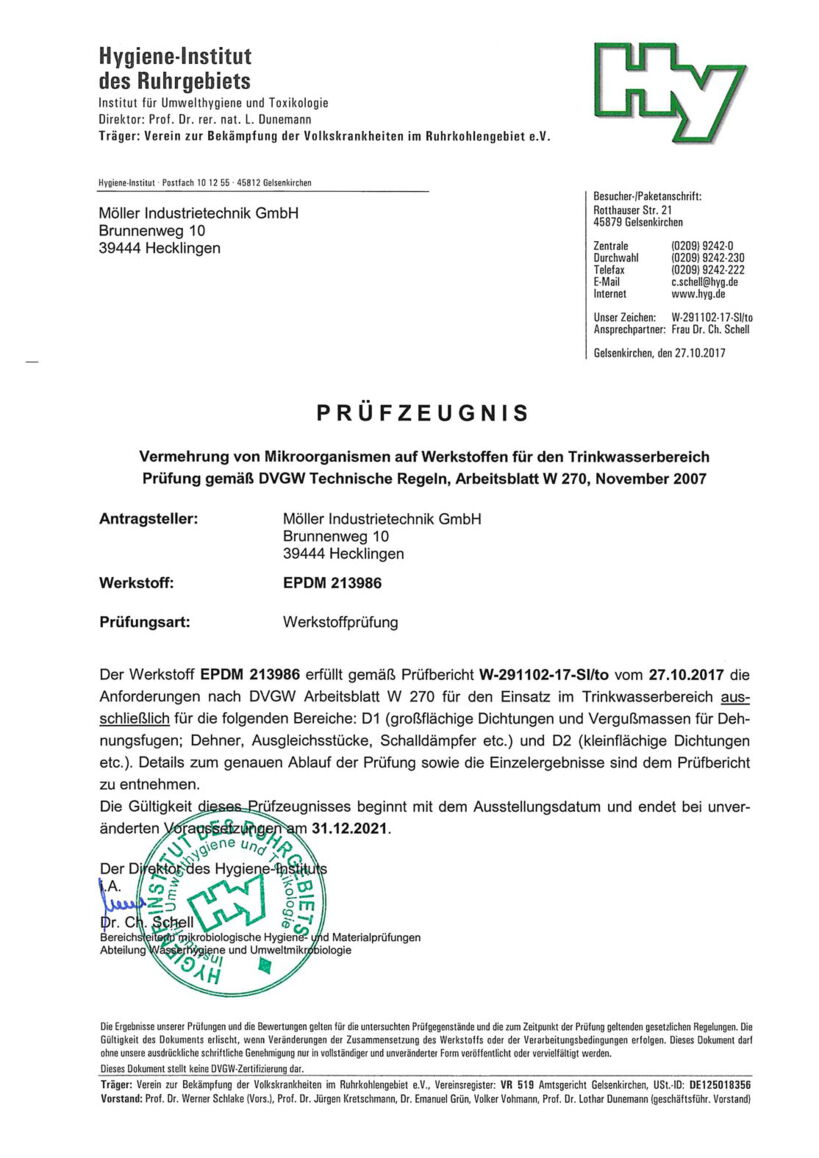

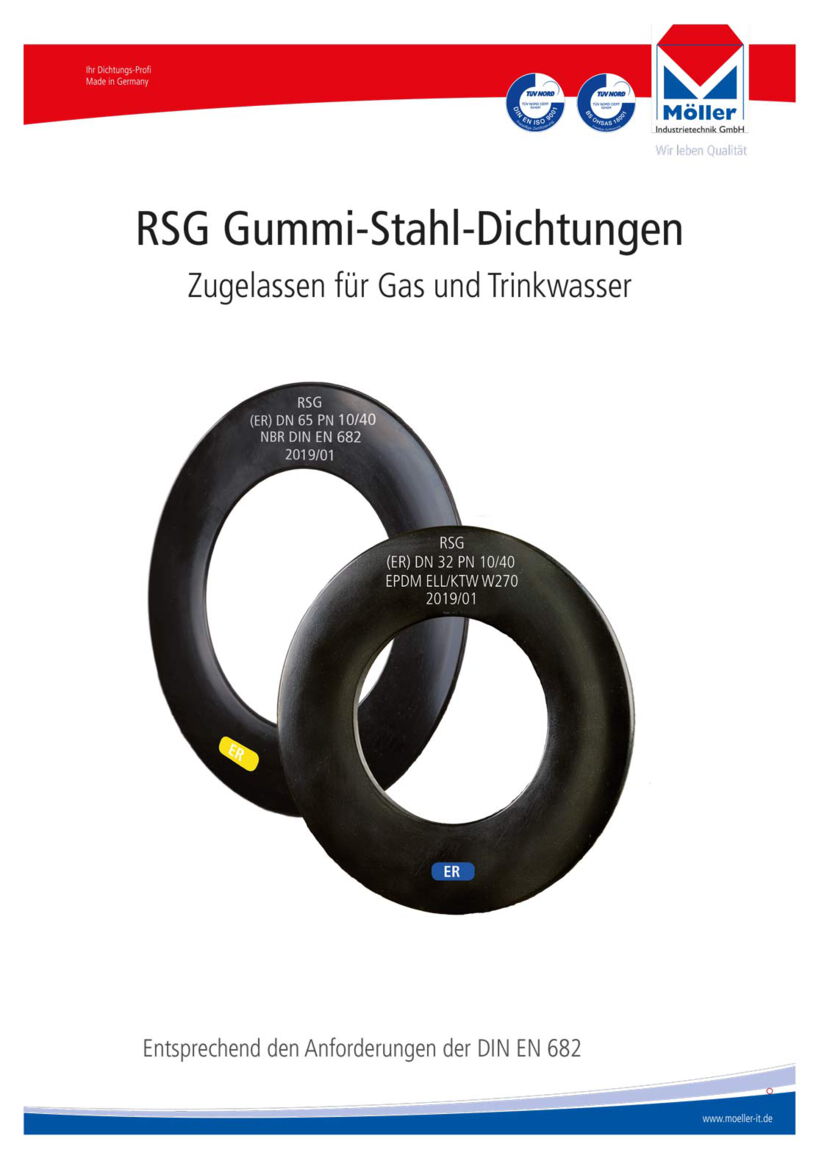

| Data sheet Download Download Rubber-Steel-Gasket EPDM DVGW - Confirmation of conformity Hygiene Download Sealing characteristics EN 13555 Download |
|||

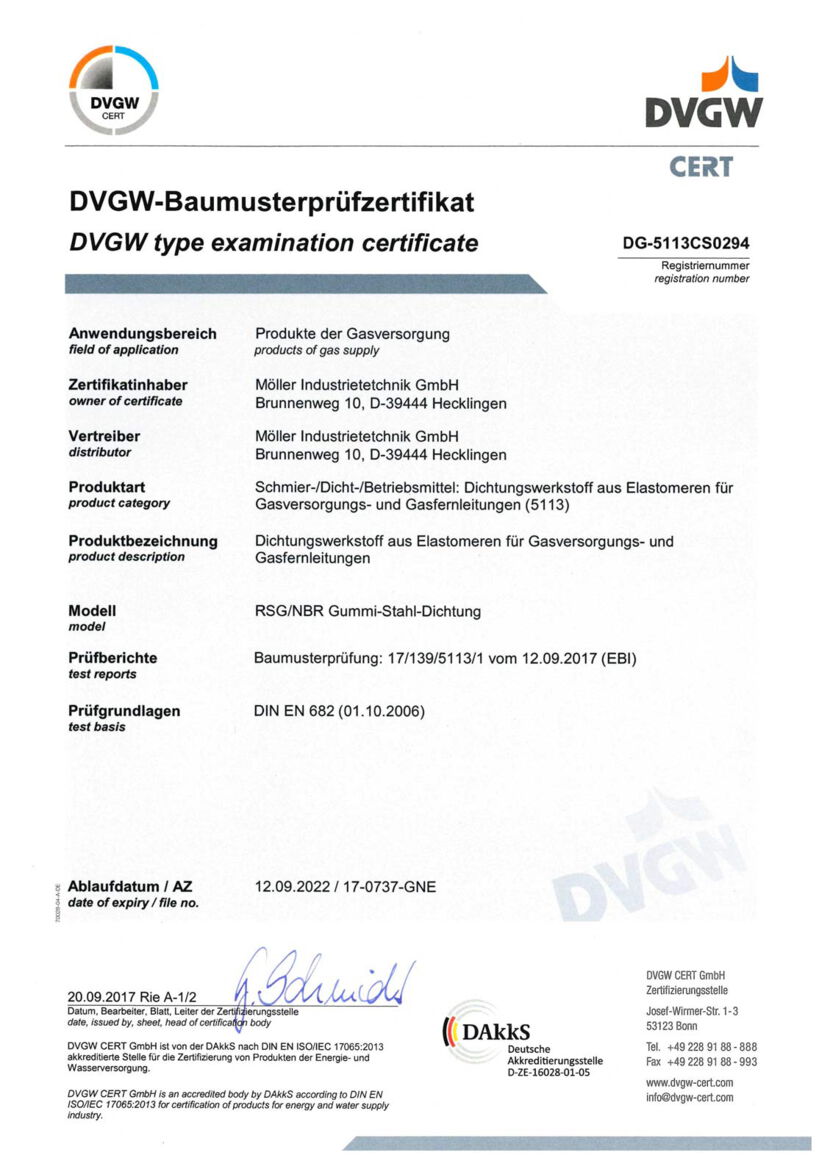

| Data sheet Download Download Rubber-Steel-Gasket NBR DVGW - type approval certificate Download Sealing characteristics EN 13555 Download |
|||
